Connections:

• External Trigger: Camera gets an Input to know when to start the acquisition
• Output A, B, C: Camera send an output to other devices to trigger their timing
• Fire: Camera sends a signal to show the duration of the Exposure Time
• Arm: Camera sends a signal indicating when it can accept an External Trigger
• Direct Gate: Camera gets a signal, that times the opening and closing of the PhotoCathode Gate
• Gate Monitor: Camera sends a signal showing when the PhotoCathode was intensified(Cable is supplied by Andor)

Internal Configurations:

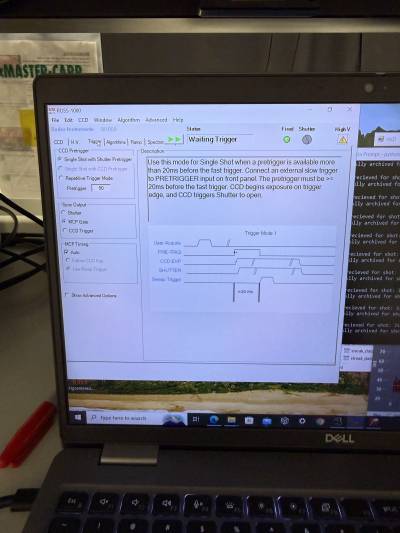

• Acquisition Mode: Single
• Triggering: External
• Readout Mode: Image
• Exposure Time: 1ms
• Vert Pixel Shift: Speed 6.5, Voltage: Normal
• Horiz Pixel Shift: Rate 3MHz, Pre Amp Gain 4x
• Gate Mode: DDG
• Gain: 1500+(with ND Filters)
• Insertion Delay: Ultra Fast (about 19ns)
• Optical Width: ON
• Gater: Delay about 99.99us, Width as low as 1.65ns

Basler_4

Basler_4 Manual

Here are the steps to continuously triggering the streak camera and allowing the python script to archive the images.

1. Turn on the camera and the HV

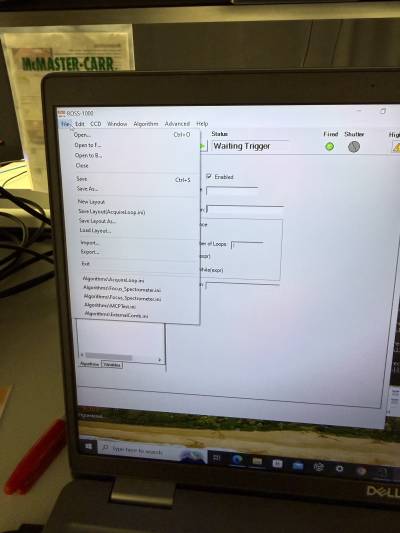

2. Click on File, then Click Algorithms\AcquireLoop.ini

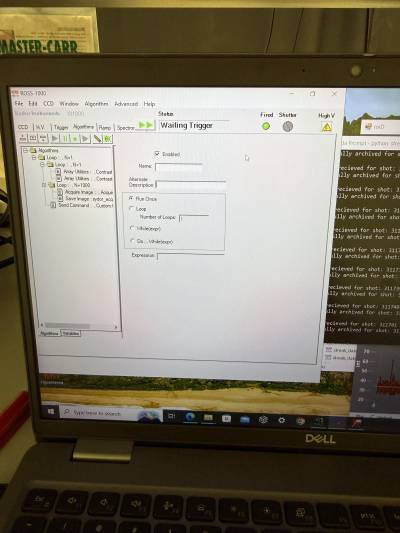

3. the click to Algorithms Tab, then navigate the directory from Algorithms to Loop: N=1
4. Click the “PLAY” button to run.
5. Move to a terminal, Go to Directory:
6. Run
7. If you do a test, while Gen Archiving, from your laptop, the Shot_Numbers should match
